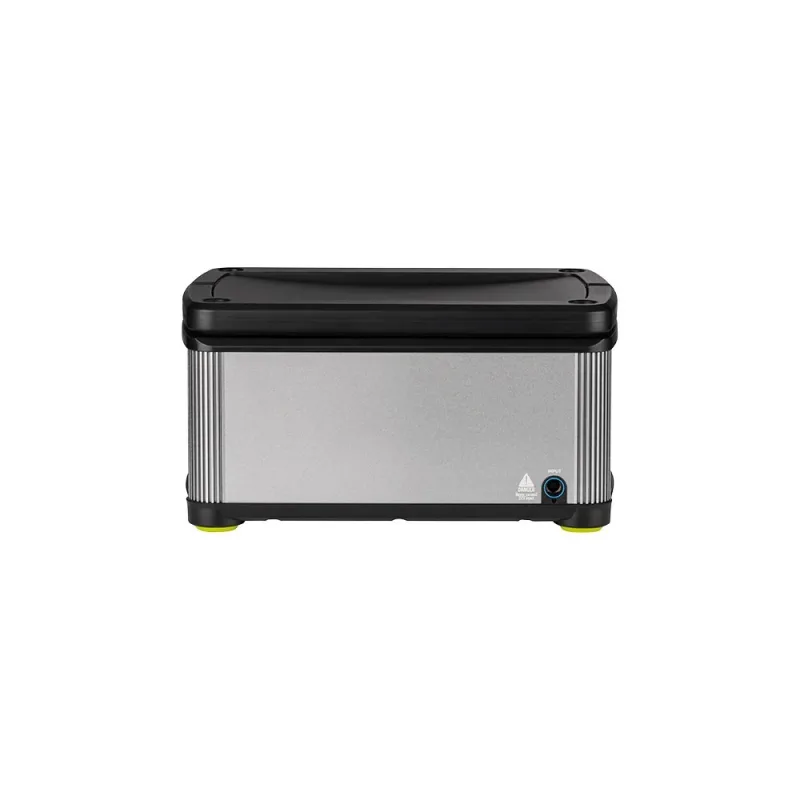

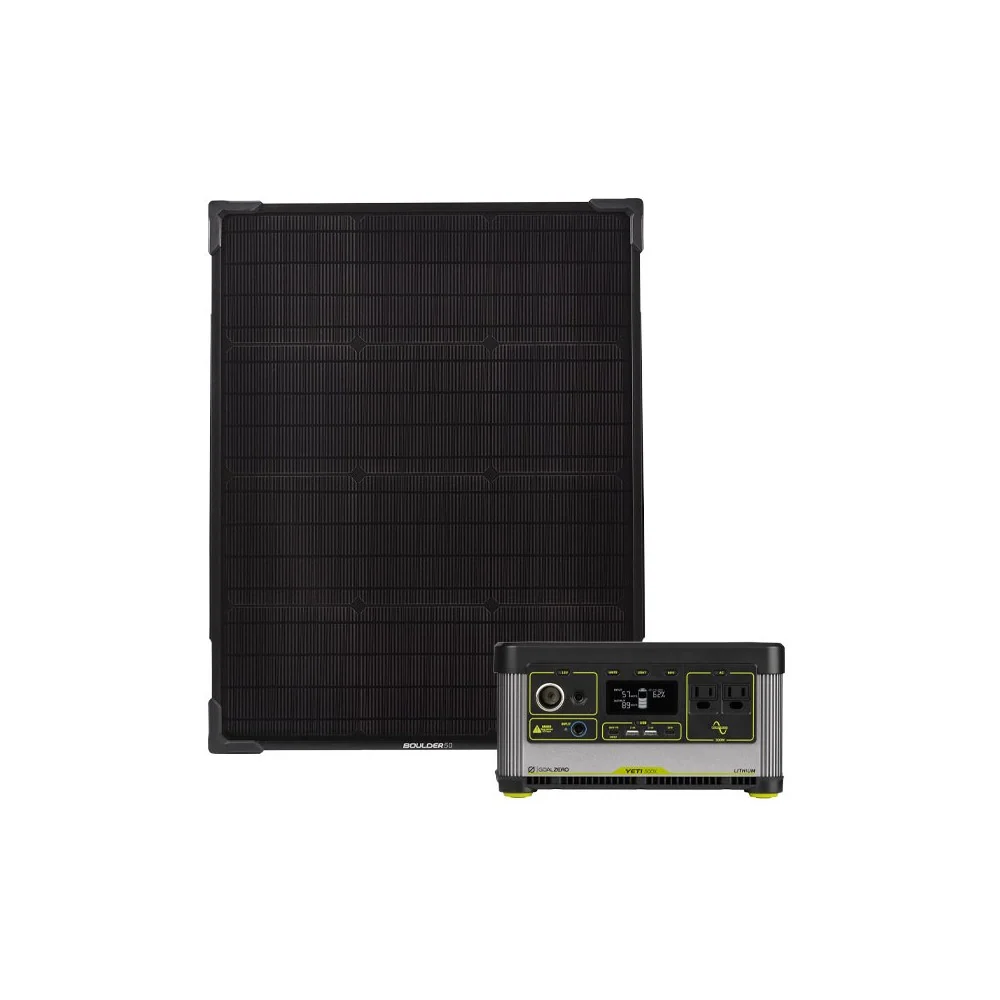

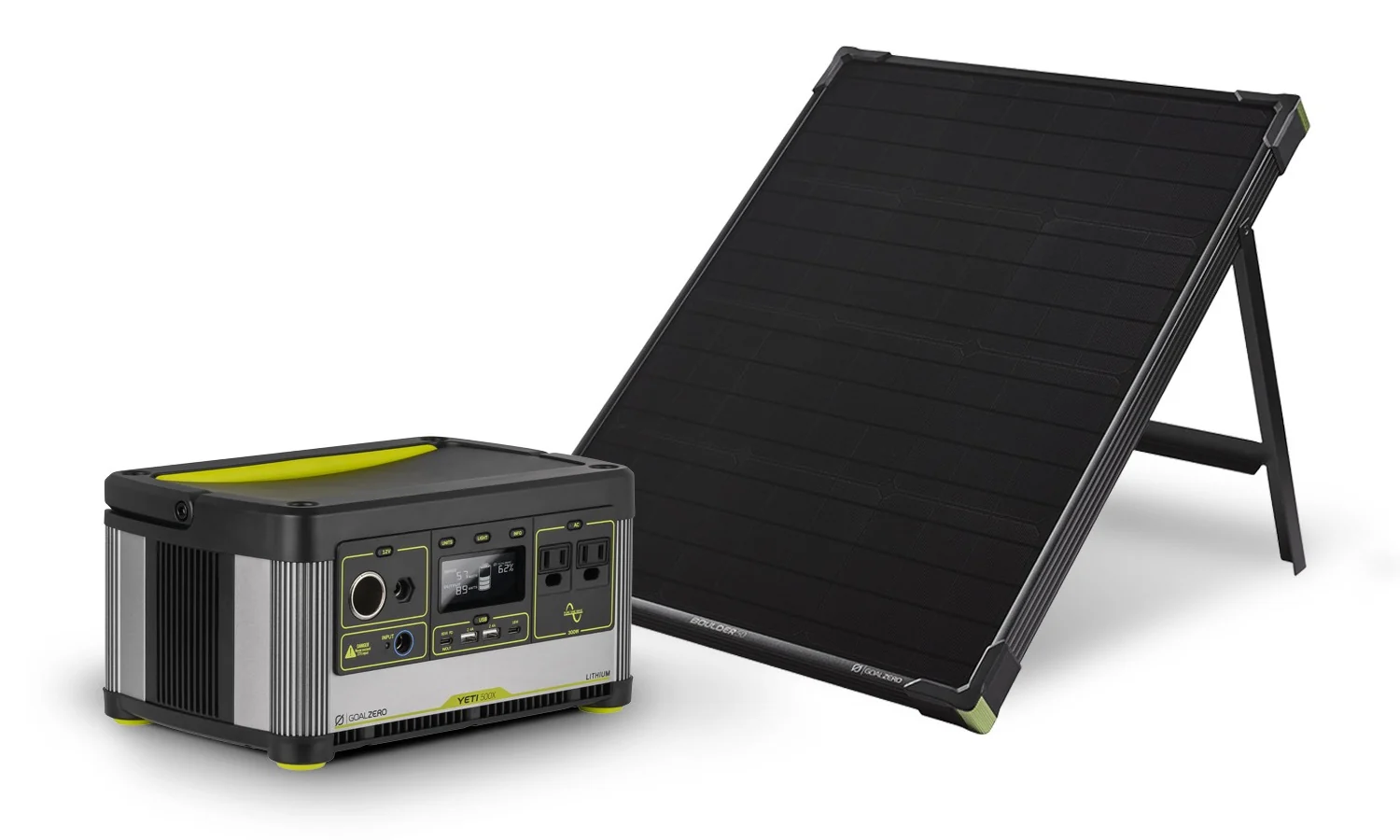

Yeti 500X + Boulder 50 Solar Generator

short

Recharge the Yeti 500X with the Boulder 50 Solar Panel while off-grid or plug into a wall outlet when at home. Power laptops, cameras, drones, and more while on the road or stay prepared in case of an emergency outage.

box1

Yeti 500X + Boulder 50 Solar Generator HIGHLIGHTS

This solar generator can recharge from the sun in as little as 12 hours.

Boulder Solar panels designed for more rugged use, with a mountable, durable aluminum frame.

A sustainable energy source with no noise and no fumes.

box2

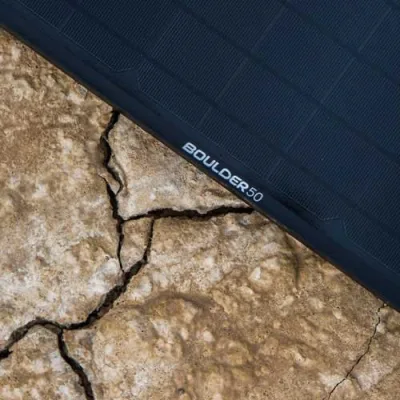

BOULDER 50 HIGHLIGHTS

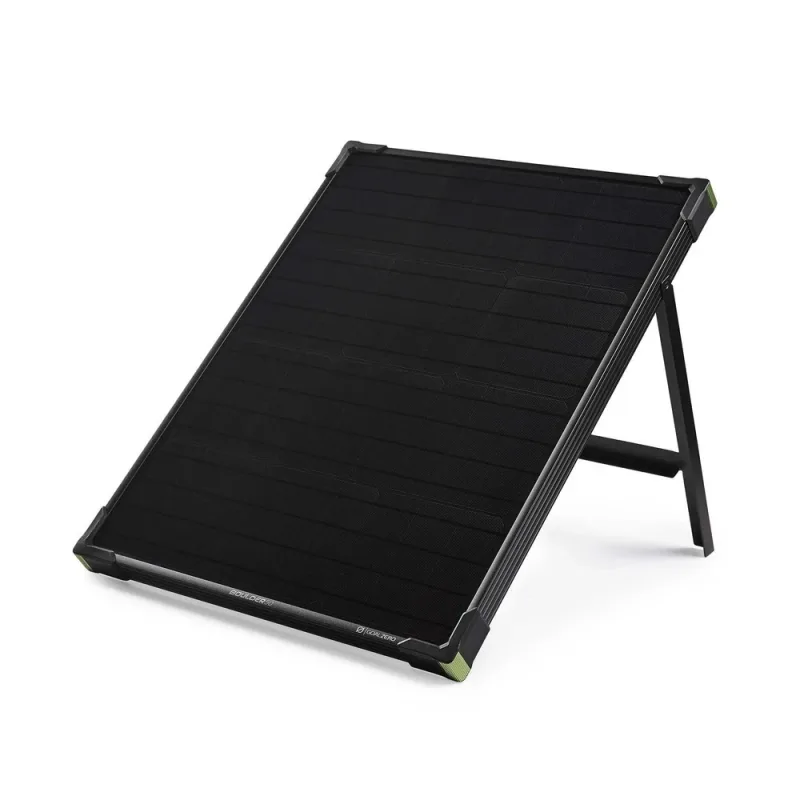

50-Watt (14-22V) panel features integrated kickstand providing optimal angle placement.

Built with strong tempered glass and an aluminum frame with added corner protection.

TIPS & TRICKS FOR USING SOLAR PANELS

1. The solar panel does not hold a charge - it produces power when it is exposed to sunlight.
2. Place solar panels towards the sun at an angle.
3. Connect High Power Power to Yeti Power Station.
4. Adjust solar panel as the sun moves across the sky.

box3

WAYS TO CHARGE THE YETI 500X

• FROM THE SUN
  Recharge from the sun by connecting a compatible solar panel, either the foldable Nomads or mountable Boulder solar panels. The higher the watts of the panel, the faster the charging times.
• FROM THE WALL
  Plug it into the wall using the included 60W power supply for a full recharge in just 10 hours, or plug in with the Yeti X 120W Power Supply to halve that charge time. You can also use any USB-C power supply to charge the power station.
• FROM THE CAR
  Plug into your vehicle's 12V outlet using the Goal Zero Yeti Lithium 12V Car Charging Cable. NOTE: Do not attempt to charge your Yeti from a 12V source using any other cable. Doing so may cause damage to the unit.

features

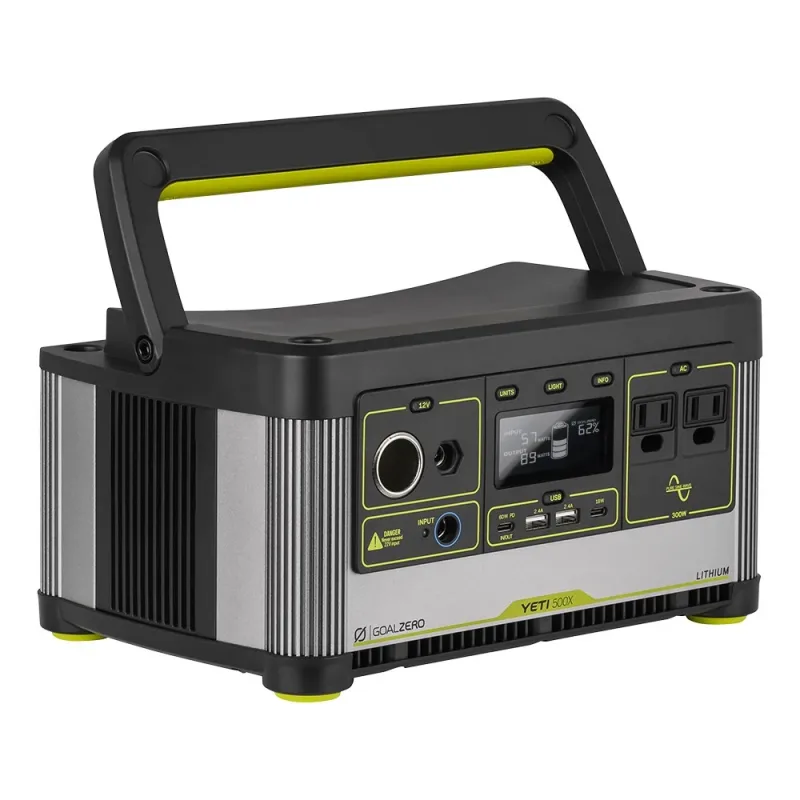

YETI 500X HIGHLIGHTS

• Power a Wide Range of Devices
  Yeti 500X is equipped with four different port options - including AC, 12V, and 60W USB-C PD - to power everything from phones to portable fridges.
• High-Speed Charging Solution
  Equipped with the latest charging technology, including a high-speed Power Delivery port capable of charging USB-C laptops, tablets, mirrorless cameras, and phones in a fraction of the time.
• Experience Unlimited Power
  Charge the Yeti 500X from the sun with our portable solar panels while away from the grid and keep it topped off from a wall outlet when you’re home. Featured MPPT charge controller ensures you’re getting the most efficient solar charge possible.

BOULDER 50 HIGHLIGHTS

• 50-Watt (14-22V) panel features integrated kickstand providing optimal angle placement.
• Built with strong tempered glass and an aluminum frame with added corner protection.

WHAT CAN THE YETI 500X POWER?

Recharges
Smart Phone (12 Wh): 42
Tablet (30 Wh): 17
Laptop (50 Wh): 10
POV Camera (5 Wh): 101
DSLR Camera (18 Wh): 28
Head Lamp (5 Wh): 101

Hours of Runtime
Light-a-Life 350 (4.5 W): 112
Light Bulb (11 W): 46
CPAP (65 W): 8
TV (42" LED) (100 W): 5
Pellet Grill (60 W): 9
Portable Fridge (25 W): 20
WiFi Router (25 W): 20

specs

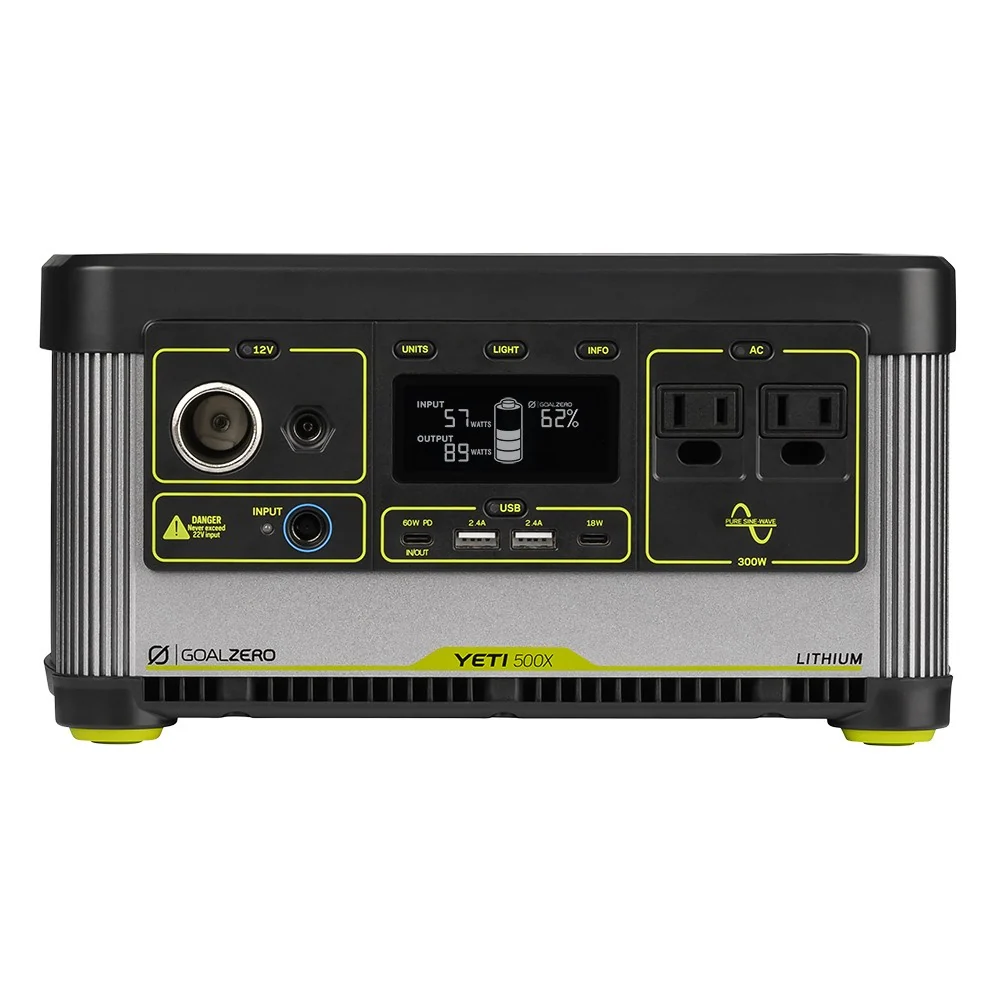

1. 12V Car Port

   12V, up to 10A (120W max), Regulated

2. 6MM Output Ports


   12V, up to 10A (120W max)

3. 8MM Charge Port


   13-22V, up to 10A (150W max)


4. USB-C PD port

   5 - 20V, up to 3.0A (60W max), Regulated

5. (2X) USB-A Port

   5 V, up to 2.4A (12W max), Regulated

6. USB-C Port


   5-9V, up to 3.0A (18W max), Regulated


7. (2x) 120V AC Inverter

   120VAC 60Hz, 2.5A (300W, 1200W surge)
   (output, pure sine wave)

tech

YETI 500X CHARGE TIMES

• Maximum input (180W): 3 hrs
• Car charger (120W): 4.5 hrs
• Wall charger (60W): 10 hrs
• Wall charger (120W): 4.5 hrs
• Nomad 20: 30-60 Hours
• Nomad 50: 12-24 Hours
• Boulder 50: 12-24 Hours
• Nomad 100: 6-12 Hours
• Boulder 100 Briefcase: 6-12 Hours
• Boulder 100: 6-12 Hours
• Boulder 200 Briefcase: 3-6 Hours

BATTERY DETAILS

• Cell chemistry: Li-ion NMC
• Pack capacity: 497Wh (10.8V, 46.8Ah)
• Lifecycles: 500 Cycles to 80% capacity (Discharge rate: 0.2C, Full charge/discharge, Temp: 25C)
• Shelf-life: Charge every 3-6 months
• Management system: 'MPPT' charge controller, low battery protection

PORTS

• USB port (Output): 5V, up to 2.4A (12W max), regulated
• USB-C port (Output): 5/9V, up to 3.0A (18W max), Regulated
• USB-C PD port (Input/ Output): 5-20V, up to 3.0A (60W max), Regulated
• 6mm port (Output, 6mm): 12V, up to 10A (120W max)
• 12V car port (Output): 12V, up to 10A (120W max), Regulated
• 120V AC Inverter: 120VAC 60Hz, 2.5A (300W, 1200W surge) (output, pure sine wave)
• Charging port (input, 8mm): 13-22V, up to 10A (150W max)

GENERAL

• Kit SKU: 44505
• Chainable: No
• Simultaneous Recharge & Discharge: Yes
• Product SKU: 36100
• Weight: 12.9 lbs (5.85 kg)
• Dimensions: 7.5 x 11.25 x 5.8 in (19.05 x 28.58 x 14.73 cm)
• Operating usage temp.: 32-104 F (0-40 C)
• Warranty: 2 years

tech2

BOULDER 50 CHARGE TIMES

• Yeti 150: 5-10 Hours
• Yeti 200X: 5-10 Hours
• Yeti 400: 12-24 Hours
• Yeti 400 Lithium: 12-24 Hours
• Yeti 500X: 12-24 Hours
• Yeti 1000 Lithium: 31-62 Hours
• Yeti 1400 Lithium: 43-86 Hours
• Yeti 1500X: 18-36

GENERAL

• Product SKU: 32406
• Chainable: up to 150 Watts
• Weight: 12.4 lbs (5.6 kg)
• Dimensions: 21.75 x 26.75 x 1.75 in (55.2 x 70 x 4.4 cm)
• Warranty: 2 years

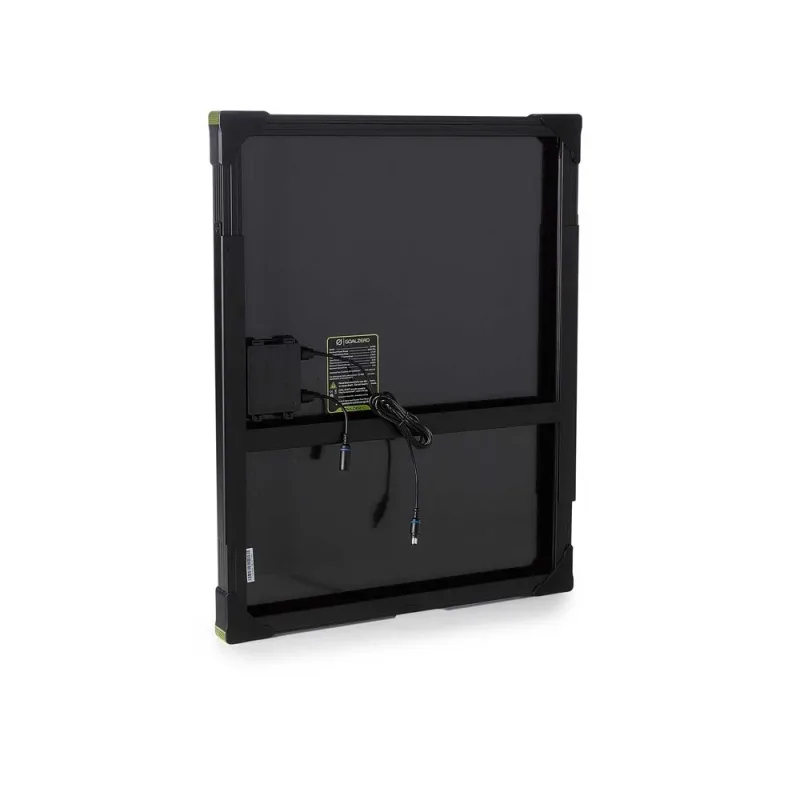

PORTS

• Solar port (blue, 8mm) output: 14-22V, up to 3.5A (50W max)
• Solar port (blue, 8mm) input chaining: up to 150W total
