Turn your Yeti into a home backup system. Powerful enough for medium to large appliances paired with the easy-to-install Home Integration Kit (HIK) generator transfer switch and four Yeti Tank Expansion Batteries to increase your battery capacity to 4,800 Watt Hours. NOTE: HIK requires installation by a qualified licensed electrician with a thorough knowledge of all applicable electrical and building codes. Only viable with indoor circuit breaker panels.
features
YETI HOME INTEGRATION KIT HIGHLIGHTS
-
Integrate Easily The Home Integration Kit (HIK) is a Reliance Pro/Tran 2 Series 15-Amp, 4-Circuit 120V Manual Transfer Switch - Customize your backup power by working with a licensed electrician and selecting up to 4 circuits from your breaker panel. Suggested circuits include fridge/freezer, garage door, outlets in main living areas, light switches, etc.
-
Recharge Anywhere Yeti Extension Cable includes 10 ft. 14AWG to connect your Yeti Portable Power Station.
-
Stay Connected Increased 5,200 mAh battery gives you enough power on hand to charge phones and headlamps multiple times, or boost your tablet.

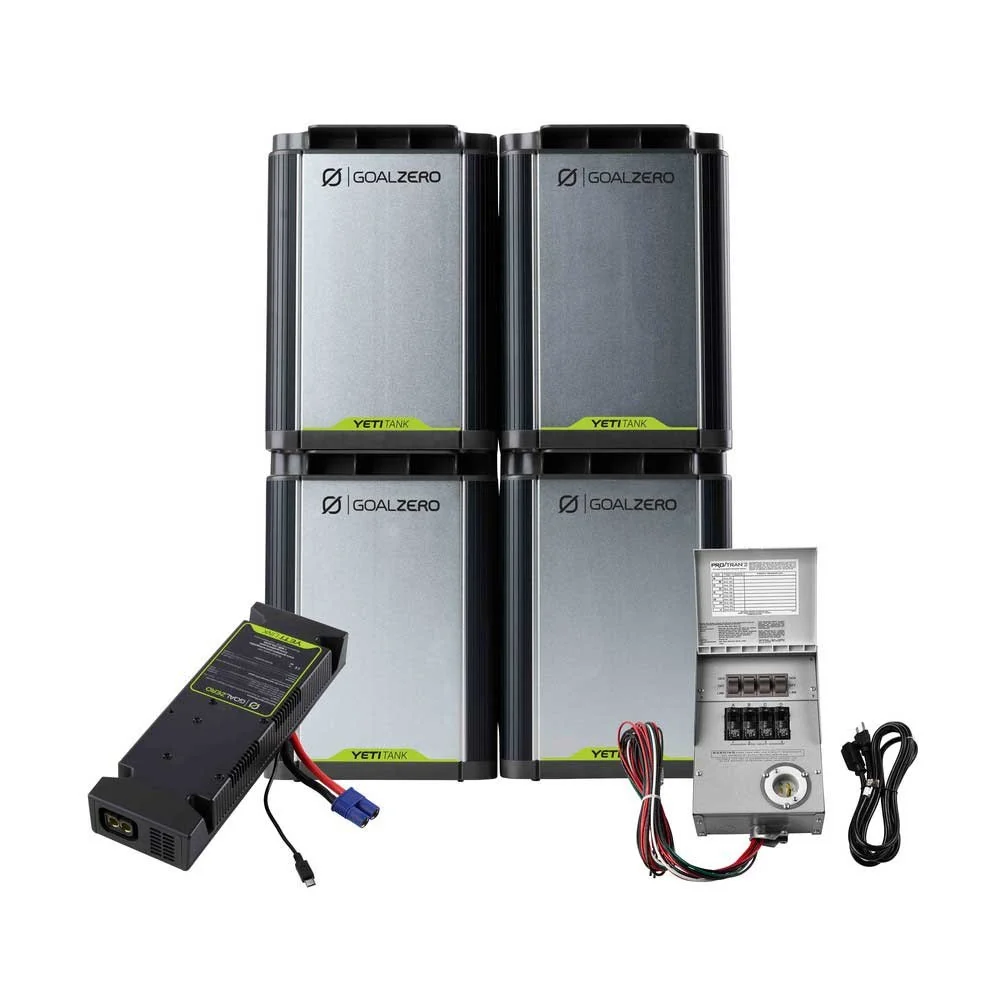

WHAT'S IN THE BOX
- Yeti Home Integration Kit
- Yeti Link Expansion Module
- (4x) Yeti Tank Expansion Battery
tech
CHARGE TIMES
- Max Input from Yeti Tank to:
- Yeti 1000/1000X: 454-605W
- Yeti 1400/1500X: 454-750W
- Yeti 3000/3000X: 750W
- Yeti 6000X: 750W
GENERAL
- Product SKU: 98210
- Weight: 1.5 lbs (680 g)
- Dimensions: 10.25 x 3.3 x 1.5 in. (26 x 8.4 x 3.8 cm)
- Warranty: 2 Years
- YETI X 120W POWER SUPPLY
- Gauge: 16AWG
- Cable Length: 9 ft 4 in.
- Dimensions: 2.5 x 5.9 x 1.4 in. (6.5 x 15 x 3.5 cm)
PORTS
- Do not exceed 22V input
- 8mm Charging Port (input): 14 - 22V Do not exceed 150W (10A) per port
- External Battery Connector (output): 65A charge controller
- External Battery Connector (Input/Output): 10.7-15V. Do not exceed 15V
- YETI X 120W POWER SUPPLY
- Input: AC Wall Plug 100-240V - 50/60Hz 3.0A
- Output: 8.0mm 16V- 7.5A, 120W
CHARGE TIMES
- Wall Charger (120W): 11hrs per tank
BATTERY DETAILS
- Lead Acid (AGM)
- 1200Wh (12V, 100Ah)
PORTS
- Expansion port male connector (input/output) 100A Max
- Expansion port female connector (input/output) 100A Max
GENERAL
- Product SKU: 23105
- Dims 15.5 x 7.5 x 10.5 in. (39.37 x 19.05 x 26.67 cm)
- Weight 77.1 lbs (34.97 kg)
- Warranty: 1 Years
PORTS
- Voltage: 120 Single-Phase
- Frequency: 60 Hertz
- Rated Watts: 1875 Watts
- Rated Amps: 15A @ 120 Volts (Single Phase)
- Number of Circuit Breakers: 4
- Max Generator Input: 15 Amps
- Maximum Wattage: 1875 Watts
- Transfer Switch Circuits: 15A 120V
- Circuit Breaker Protection: Each Circuit
GENERAL
- Product SKU: 44060
- Made: USA
- Weight: 9.5 lbs (4.3 kg)
- Dimensions: 7.75 x 11.25 x 4.5 in.
- Enclosure: NEMA 1R
- Conduit Length: 18
- UL Listed: Yes
- Compatible with Yeti X and Yeti Lithium Power Stations 1000W and up
